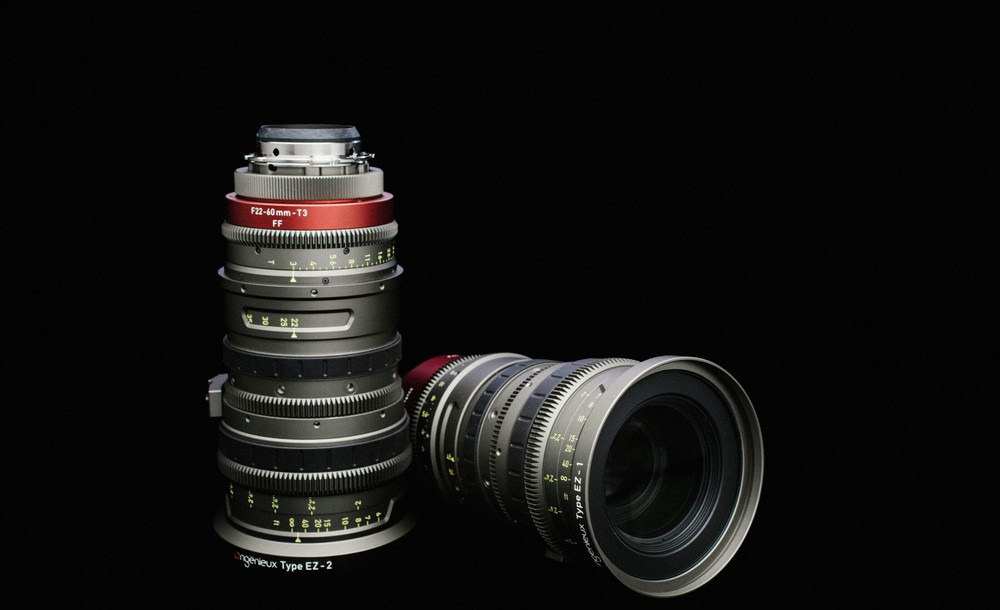

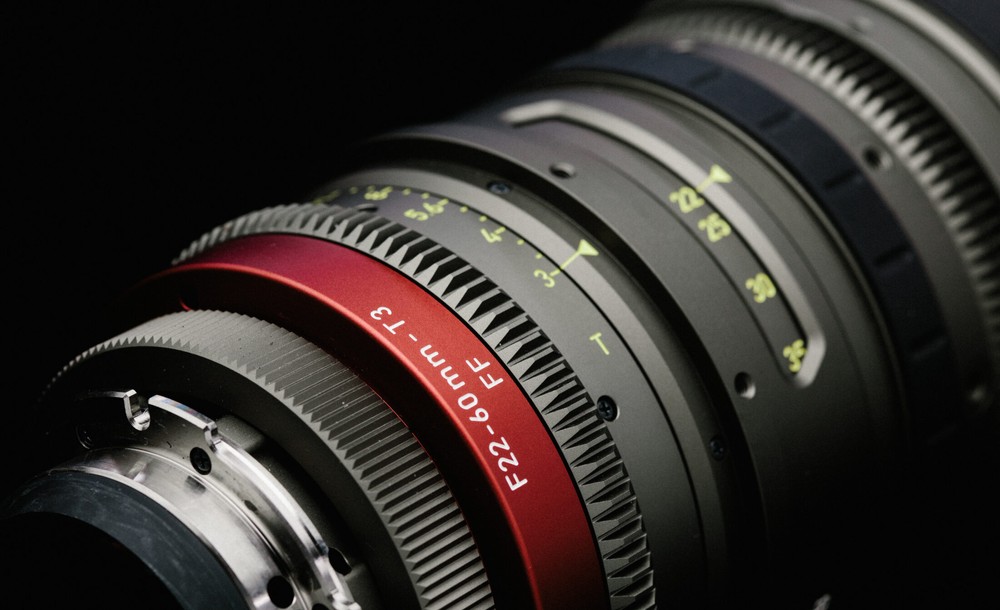

Angénieux Type EZ2 22-60mm (FF)

The Angénieux Type EZ-2 for FF/VistaVision and S35 format is a wide zoom lens with a zoom factor of 2.7x. Its focal range and aperture are set to 22-60mm F2.8/T3 for the FF/VV covering an image up to 46 mm and 15-40mm F1.9/T2 for the S35 covering an image up to 30mm. By exchanging the rear lens group, the lens can be switched from FF/VV to S35 and from S35 to FF/VV

  • 22-60mm T3 / f2.8, image coverage up to 46mm diagonal for FF/VV and 15-40mm T2 / f1.9, image coverage up to 30mm diagonal for S35
  • Lightweight (2,070g / 4.6 pounds)
  • Extremely fast T2 across zoom range with no ramping
  • Traditional Angenieux look, colorimetry matches those of OPTIMO & OPTIMO STYLE series.

Specifications

FOCAL LENGTH T STOP CLOSE FOCUS FRONT DIAMETER WEIGHT LENGTH MOUNT FORMAT ZOOM RATIO

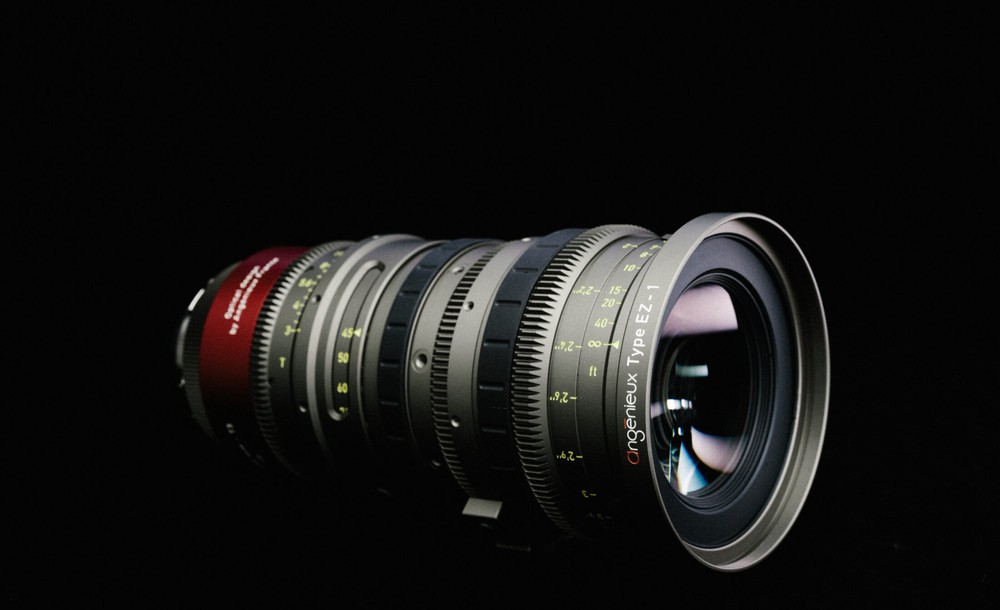

Angenieux Type EZ-1 45-135mm FF T3 2′ 114mm 2kg 226mm PL FF 3X
